Qt Quick Ultralite shapes Example

Demonstrates how to use shapes in Qt Quick Ultralite.

Overview

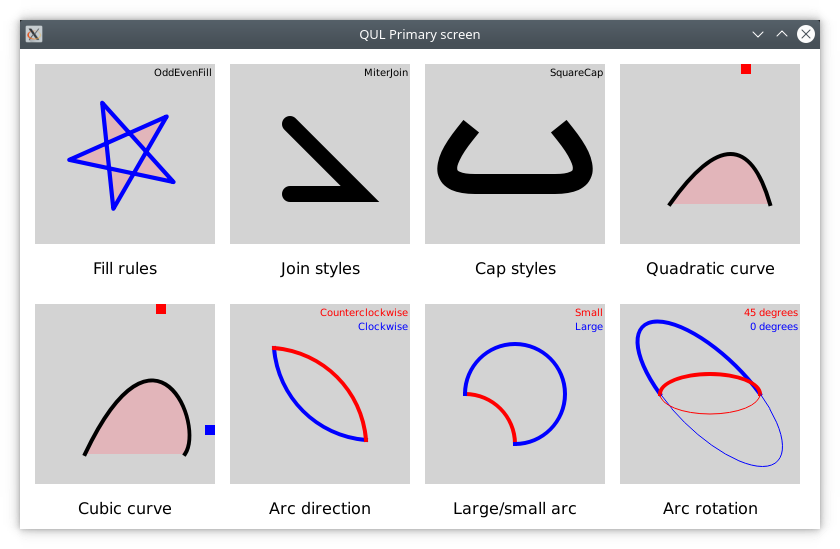

This example shows how to use the Shape and ShapePath APIs in QML.

Target platforms

Infineon/Cypress TVIIC2D6M (with caveat noted in the Supported Features table)
NXP i.MX RT1170 Evaluation Kit

Project structure

The shapes example consists of 11 files, CMakeLists.txt, shapes.qml, ArcDirection.qml, ArcRotation.qml, CapStyles.qml, CubicCurve.qml, FillRules.qml, JoinStyles.qml, LargeSmallArc.qml, QuadraticCurve.qml, and ShapesEntry.qml.

The CMake project file contains a basic build script.

CMake project file

cmake_minimum_required (VERSION 3.21.1)

project(shapes VERSION 0.0.1 LANGUAGES C CXX ASM)
if (NOT TARGET Qul::Core)
    find_package(Qul)
endif()

qul_add_target(shapes)

qul_target_qml_sources(shapes
    shapes.qml
    ShapesEntry.qml
    FillRules.qml
    JoinStyles.qml
    CapStyles.qml
    QuadraticCurve.qml
    CubicCurve.qml
    ArcDirection.qml
    LargeSmallArc.qml
    ArcRotation.qml
    )

target_link_libraries(shapes PRIVATE Qul::Shapes)
app_target_setup_os(shapes)
app_target_default_entrypoint(shapes shapes)

if (QUL_BUILD_QMLPROJECT_EXAMPLES)
    qul_add_target(shapes_qmlproject QML_PROJECT mcu_shapes.qmlproject)
    app_target_setup_os(shapes_qmlproject)
    app_target_default_entrypoint(shapes_qmlproject shapes)
endif()

`ArcDirection.qml`

ArcDirection.qml demonstrates the PathArc direction property.

Shape {
    width: 100
    height: 100
    anchors.centerIn: parent

    scale: root.shapeScale

    ShapePath {
        fillColor: "transparent"
        strokeColor: index === 1 ? "red" : "blue"
        strokeWidth: 4

        startX: 4; startY: 4
        PathArc {
            id: arc
            x: 96; y: 96
            radiusX: 100; radiusY: 100
            direction: index === 1 ? PathArc.Clockwise : PathArc.Counterclockwise
        }
    }
}

`ArcRotation.qml`

ArcRotation.qml demonstrates the PathArc xAxisRotation property.

Shape {
    width: 200
    height: 200
    anchors.centerIn: parent

    scale: root.shapeScale

    ShapePath {
        fillColor: "transparent"
        strokeColor: index === 1 ? "red" : "blue"
        strokeWidth: 4

        startX: 50; startY: 100
        PathArc {
            x: 150; y: 100
            radiusX: 50; radiusY: 20
            xAxisRotation: index === 1 ? 0 : 45
        }
    }
}
Shape {
    width: 200
    height: 200
    anchors.centerIn: parent

    scale: root.shapeScale

    ShapePath {
        fillColor: "transparent"
        strokeColor: index === 1 ? "red" : "blue"

        startX: 50; startY: 100
        PathArc {
            x: 150; y: 100
            radiusX: 50; radiusY: 20
            xAxisRotation: index === 1 ? 0 : 45
            direction: PathArc.Counterclockwise
        }
    }
}

`CapStyles.qml`

CapStyles.qml demonstrates the ShapePath capStyle property.

Shape {
    anchors.centerIn: parent
    width: 200
    height: 100

    scale: root.shapeScale

    ShapePath {
        id: capTest

        strokeColor: "black"
        strokeWidth: 20
        fillColor: "transparent"

        property int capStyleIdx: 0
        capStyle: style(capTest.capStyleIdx)

        startX: 50; startY: 30
        PathSvg { path: "Q 10 80 60 80 L 140 80 Q 190 80 150 30" }
    }
}

`CubicCurve.qml`

CubicCurve.qml demonstrates PathCubic element.

Shape {
    id: shape
    anchors.fill: parent

    ShapePath {
        strokeWidth: 4 * root.shapeScale
        strokeColor: "black"
        fillColor: "#55ff7788"

        startX: 50 * root.shapeScale
        startY: 150 * root.shapeScale
        PathCubic {
            x: 150 * root.shapeScale
            y: 150 * root.shapeScale
            control1X: cp1.x; control1Y: cp1.y
            control2X: cp2.x; control2Y: cp2.y
        }
    }
}

`FillRules.qml`

FillRules.qml demonstrates the ShapePath fillRule property.

Shape {
    width: 100
    height: 100
    scale: 1.4 * root.shapeScale
    anchors.centerIn: parent
    ShapePath {
        id: star
        strokeColor: "blue"
        fillColor: "#55ff7788"
        strokeWidth: 3
        capStyle: ShapePath.RoundCap
        joinStyle: ShapePath.RoundJoin
        PathMove { x: 90; y: 50 }
        PathLine { x: 50 + 40 * Math.cos(0.8 * 1 * Math.PI); y: 50 + 40 * Math.sin(0.8 * 1 * Math.PI) }
        PathLine { x: 50 + 40 * Math.cos(0.8 * 2 * Math.PI); y: 50 + 40 * Math.sin(0.8 * 2 * Math.PI) }
        PathLine { x: 50 + 40 * Math.cos(0.8 * 3 * Math.PI); y: 50 + 40 * Math.sin(0.8 * 3 * Math.PI) }
        PathLine { x: 50 + 40 * Math.cos(0.8 * 4 * Math.PI); y: 50 + 40 * Math.sin(0.8 * 4 * Math.PI) }
        PathLine { x: 90; y: 50 }
    }
    NumberAnimation on rotation {
        from: 0
        to: 360
        duration: 5000
        loops: Animation.Infinite
    }
}

`JoinStyles.qml`

JoinStyles.qml demonstrates the ShapePath joinStyle property.

Shape {
    anchors.centerIn: parent
    width: 120
    height: 120

    scale: root.shapeScale

    ShapePath {
        id: joinTest

        strokeColor: "black"
        strokeWidth: 16
        fillColor: "transparent"
        capStyle: ShapePath.RoundCap

        property int joinStyleIdx: 0
        joinStyle: style(joinStyleIdx)

        startX: 30
        startY: 30
        PathLine { x: 100; y: 100 }
        PathLine { x: 30; y: 100 }
    }
}

`LargeSmallArc.qml`

LargeSmallArc.qml demonstrates the PathArc useLargeArc property.

Shape {
    width: 200
    height: 200
    anchors.centerIn: parent

    scale: root.shapeScale

    ShapePath {
        fillColor: "transparent"
        strokeColor: index === 0 ? "red" : "blue"
        strokeWidth: 4

        startX: 50; startY: 100
        PathArc {
            x: 100; y: 150
            radiusX: 50; radiusY: 50
            useLargeArc: index === 1
        }
    }
}

`QuadraticCurve.qml`

QuadraticCurve.qml demonstrates PathQuad element.

Shape {
    id: shape
    width: parent.width
    height: 100
    anchors.verticalCenter: parent.verticalCenter

    ShapePath {
        strokeWidth: 4 * root.shapeScale
        strokeColor: "black"
        fillColor: "#55ff7788"

        startX: 50 * root.shapeScale
        startY: 100 * root.shapeScale
        closed: true
        PathQuad {
            x: 150 * root.shapeScale
            y: 100 * root.shapeScale
            controlX: cp.x; controlY: cp.y
        }
    }
}

Files:
